30-in-1 GPG Easy JIGs

Feature

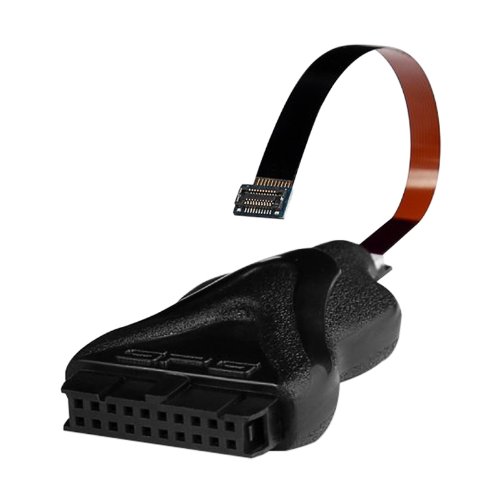

• 30-in-1 GPG Easy JIGs are special PCBs to perfectly fit LG, Nokia, Samsung and Huawei mobile devices. These PCBs have appropriately soldered pins so you can start working right away. With 30-in-1 GPG Easy JIGs you'll be able to repair dead boot of the devices (cell phones, modems, etc.) with help of ORT, RIFF JTAG or any other supported JTAG device.
• Supported Boxes: Omnia Repair Tool Medusa Box (using Z3X Easy JTAG) Octoplus Box (using Z3X Easy JTAG) RIFF JTAG Box GPG JTAG Box Z3X Easy JTAG
• 30-in-1 GPG Easy JIGs - Supported Models:

  F01: U8800, U8800+
  F02: LG P990, P999, P993 Modem
  F03: LG E510, E612, E720, E900, C550, C660, C660H, C710H, E400, E405, E436, E615, E720, GD880, GM730, GN750, GT540, KU3700, P350, P500, P690, P698, P705, P715, (F160S, F160L, F160K, F200L, F200S, F200K, F200LS-14P header is required) all the LG14P pinounts
  F04:LG E970, E960, E973, E971, E975, F180L/S/K, E975W, E976, E975R, E975K, LS970, E978, E977, E975T, LGL21, L-01E
  F05: F260L, F260S, F260K molex header is required P870, l-06C, all the LG 14P JTAG pinouts
  F06: LG P880G, P895, P895QB, P970, SU870, K5400, SU760, P725, SU540, P760, P765, P768, P768E, P768F, P768g, P768N, P769, P769BK, P769BKGO JTAG support is required, all the LG 30P JTAG pinouts
  F07: LG SU640, LU6200, F100L/S/K, F120L/S/K, V950; Modem: P930, P935, P936
  F08: LGP930, P935, P936; Modem: SU640, LU6200, F100L/S/K, F120L/S/K, V950
  F09: LG CU920, CU575, L705I, L852I all the JTAG pinouts
  F10: I9003, I7500, T939, 805sc, F338, I5800
  F11: E110S (E220L, E220S, E220K JTAG support is required)
  F12: M110S, M190S, SC-02, P7500
  F13: S8000
  F14: D710
  F15: I535, T999, T999V, I747M, R530M, R530U, L710, I747, I547, SC-06D, I437, I8552, I9082, I9152, I9205, MSM8960

• F16: I9020, I9023, I997, I9000, I987, T959, T959V, YP-G1, T759
  F17: I9100G, I9108, I9108X
  F18: E120L/S/K, E160S/K, I717, I727, I9210, P7320, E140L/S/K, SC-05, SC-03, all Samsung 20P phones
  F19: I500, I889, N7005 (I9500, N7100, E210L, E210S, E210K JTAG support is required)
  F20: I9220, I9228, N7000, M250L
  F21: E160L
  F22: I9100, N8010, P6200, P6810, I777, M250S/K, P3100, P3110, P3113, P5100, P5110, P5113
  F23: LG F240K, F240L, F240S, E980. E980P, E985, E986, E987, E988, E989 molex header is required
  F24: Nokia L610, L710
  F25: CU720, GD880, L04A, L06A
  F26: LG L600I, L704I, L705I
  F27: LGA340
  F28: Samsung M8400
  F29: Samsung I937
  F30: LG CT810
